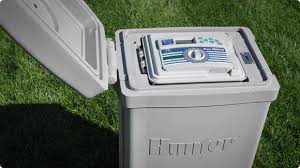

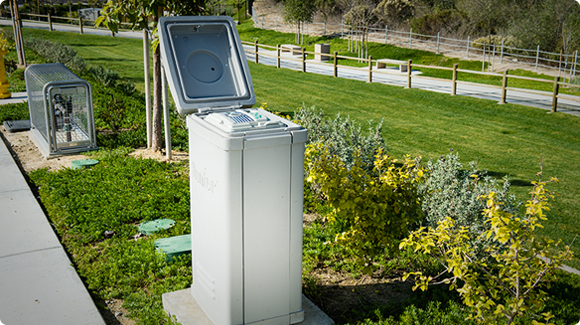

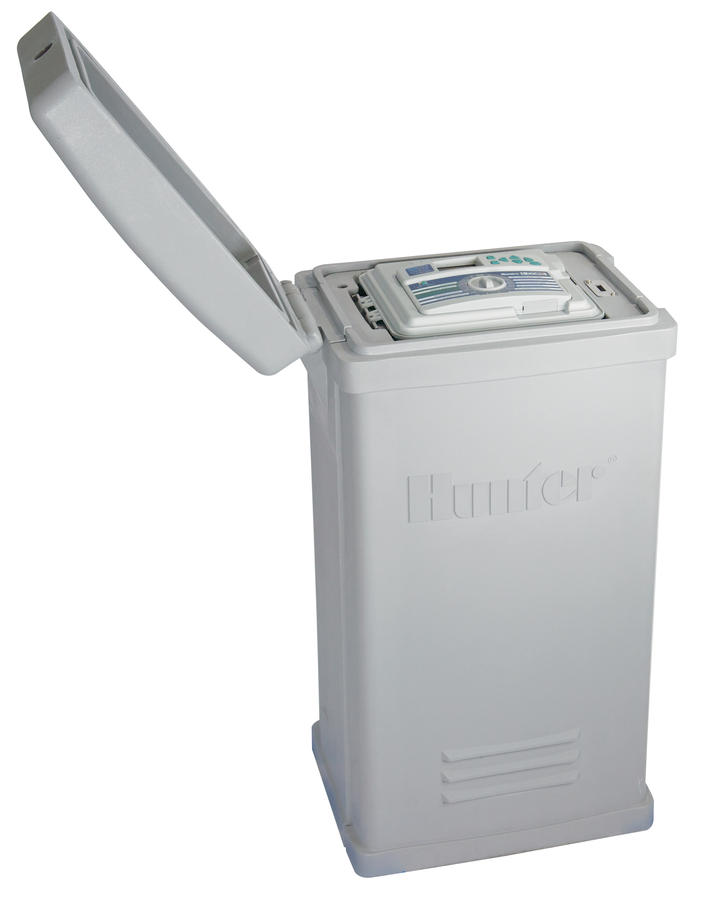

Icore 6 station with plastic pedestal

Description

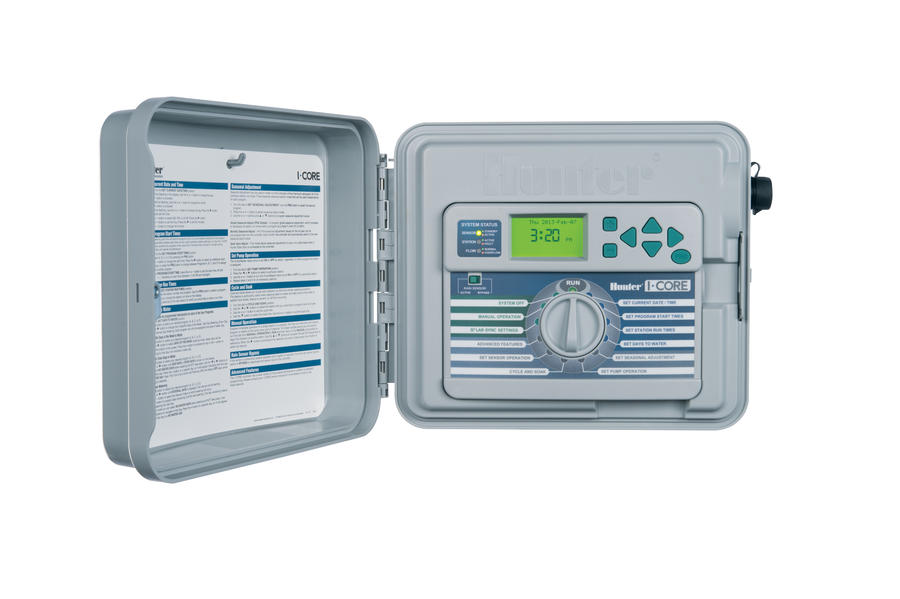

The I-Core is Hunter’s controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL® two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync®, I-Core’s possibilities are all but limitless.

FEATURES :

• Number of stations : 6 to 42
• Type : modular
• Enclosures : outdoor
• Independent programs : 4
• Start times per program : 8(A, B, C); 16(D)
• Max. station run time : 12hrs
• Real time flow monitoring
• Easy Retrieve memory
• One touch manual start and advance
• Rain sensor bypass
• Programmable rain delay
• Quick check
• Non-volatile memory
• Automatic short circuit protection
• Seasonal Adjustment : Global or automatic updates with Solar Sync
• Delay between stations
• Sensor programmability
• Total Run Time
• Cycle and Soak
• No water window
• Non-water days

ELECTRICAL SPECIFICATIONS

• Transformer input : 120/240 VAC, 50/60Hz
• Transformer output (24VAC) : 1.4A
• Dual voltage transformer (120/240VAC)
• Station Output (24VAC) : 0.56A
• Simultaneous station operation (includes master valve) : 5 valves
• Pump/master valve (24VAC) : 0.28A
• Sensor inputs : 2
• Operating temperature : -18^oC to 66^oC

APPROVALS

• CE, UL, cUL, C-tick, FCC
