Description
- It is ideal for remote areas because it does not require electrical power
- Using the injector reduce costs with chemicals because the losses are very small.
- Made of resistant material lives long under bad weather conditions and the action of chemicals .

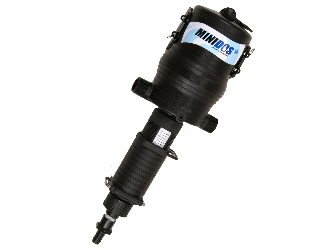

Installed directly in the water supply line, the injector operates without electricity, using water pressure as the
power source. The water drives the injector, which pulls the required percentage of concentrate directly from the chemical solution container. Inside the patented mixing chamber the concentrate is mixed with the water and the water pressure forces the mixed solution downstream.
The amount of concentrate will be directly proportional to the volume of water entering the injector, regardless of variations in flow or pressure.
|
Description
|
Flow range l/min
|
Operating pressure
|
Injection range
|
|
%
|
ratio
|
|
MiniDos 0.4%
|
7 - 2725
|
0.5 – 9.6
|
0.025 – 0.4%
|
1:4000 – 1:250
|
|
MiniDos 1%
|
7 - 2725
|
0.5 – 9.6
|
0.2 – 1%
|
1:500 – 1:100
|
|
MiniDos 2.5%
|
7 - 2725
|
0.5 – 9.6
|
0.5 – 2.5%
|
1:200 – 1:40
|
|
MiniDos 5%
|
7 - 2725
|
0.5 – 9.6
|
1 – 5%
|
1:100 – 1:20
|
|
MiniDos 10%
|
16 - 2271
|
0.5 – 4.5
|
2 – 10%
|
1:50 – 1:10
|
|
MiniDos 20%
|
16 - 1590
|
0.5 – 4.5
|
4 -20%
|
1:25 – 1:5
|
