Description

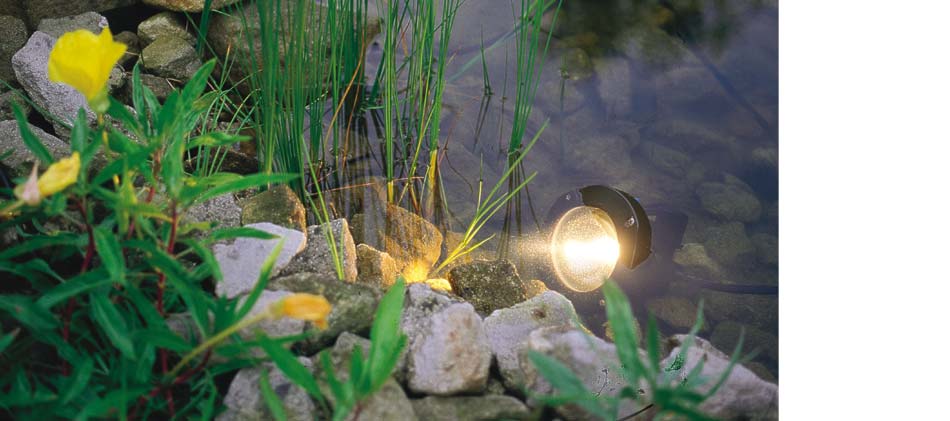

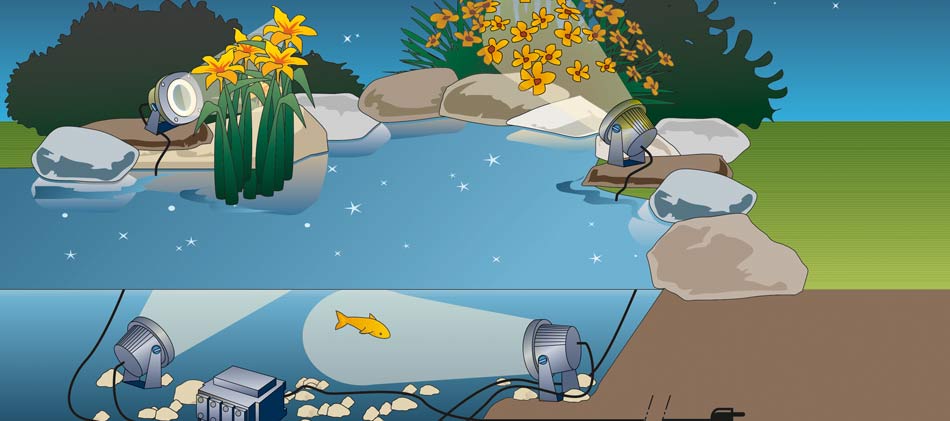

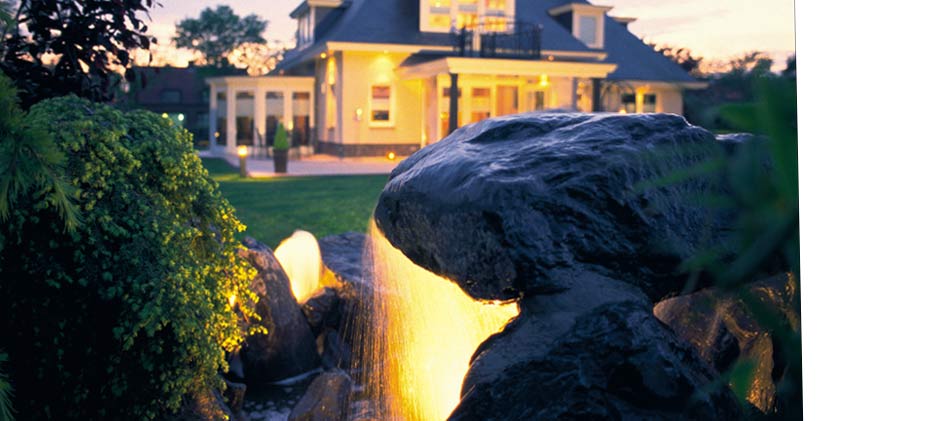

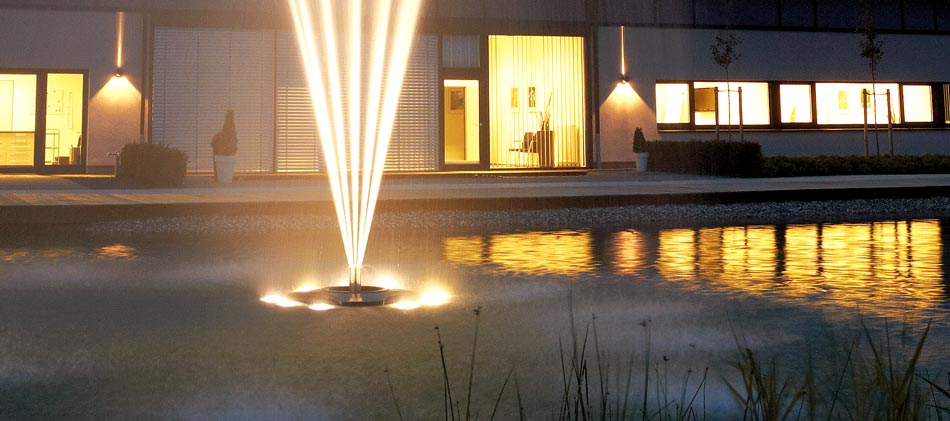

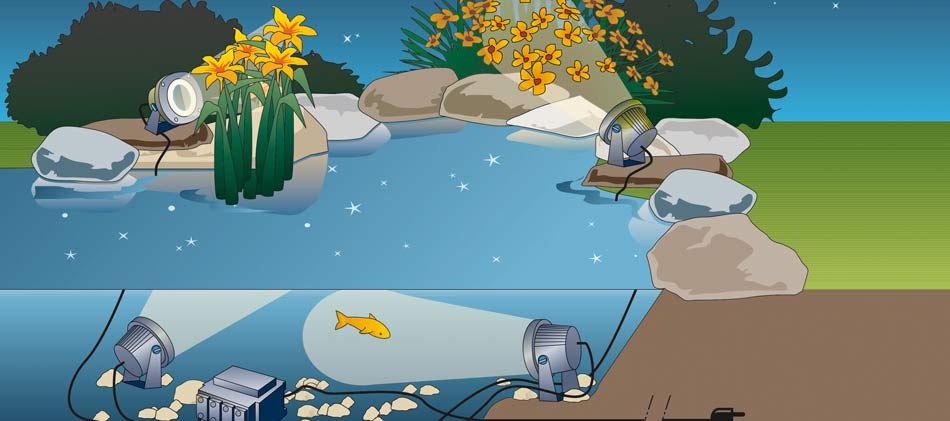

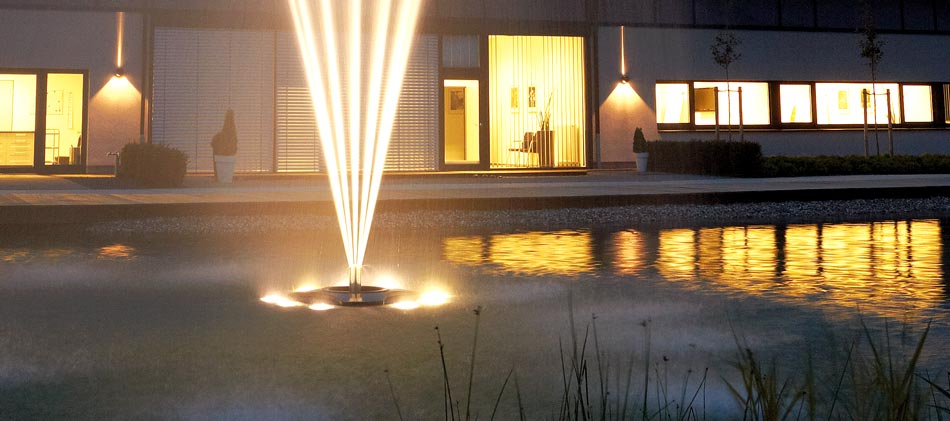

The LunAqua 10 lighting system can be implemented constructively underwater as well as above water. There is no difference whether the lighting system is used in the home garden pond, as garden or park lighting or for professional fountain installations. It is considered a system because the compact lights are connected via special connections with the 12 volt safety transformer. Likewise the transformer can also be implemented underwater. This enables the bridging of long distances between the 230 V outlet and the transformer with standard cables.

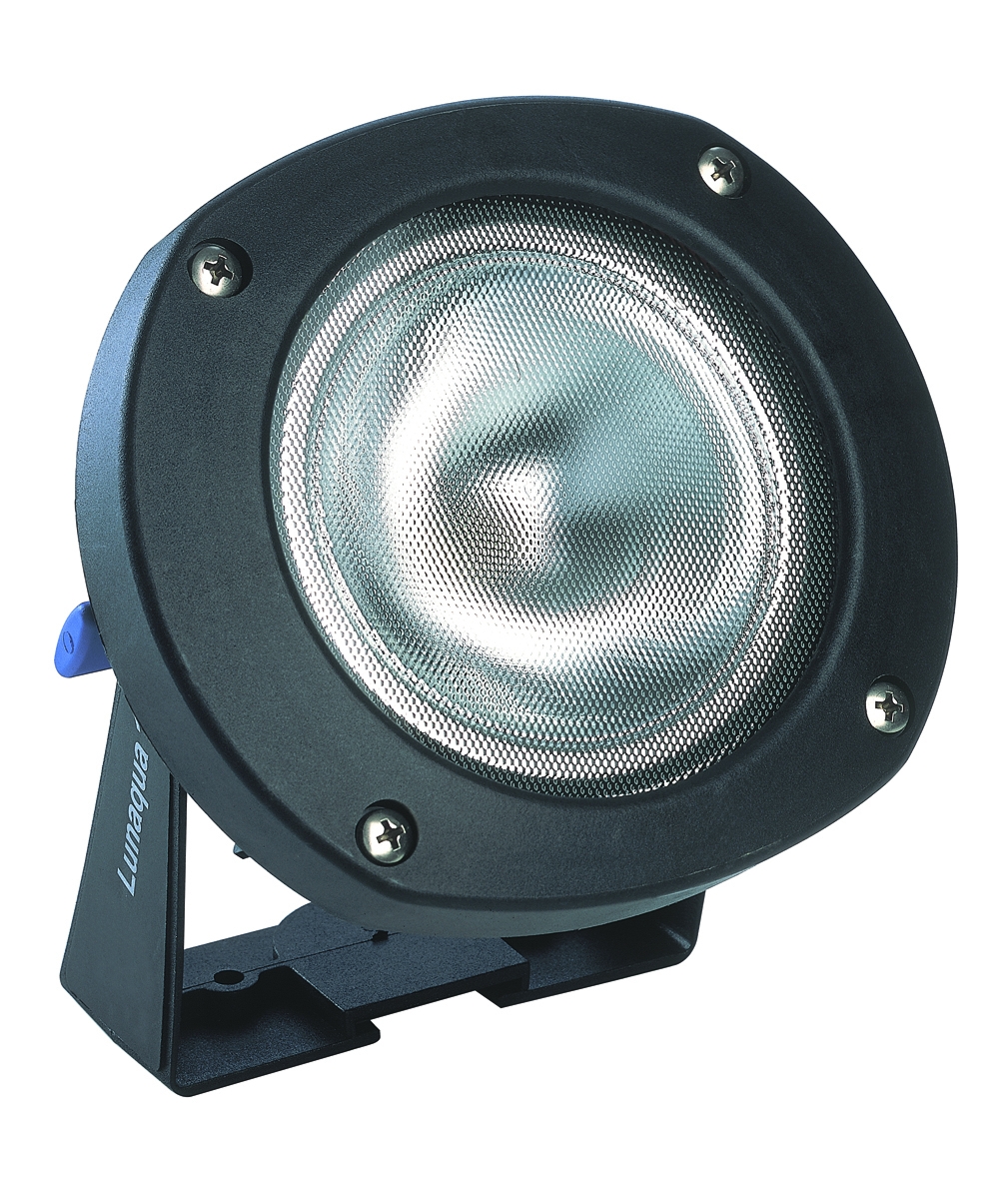

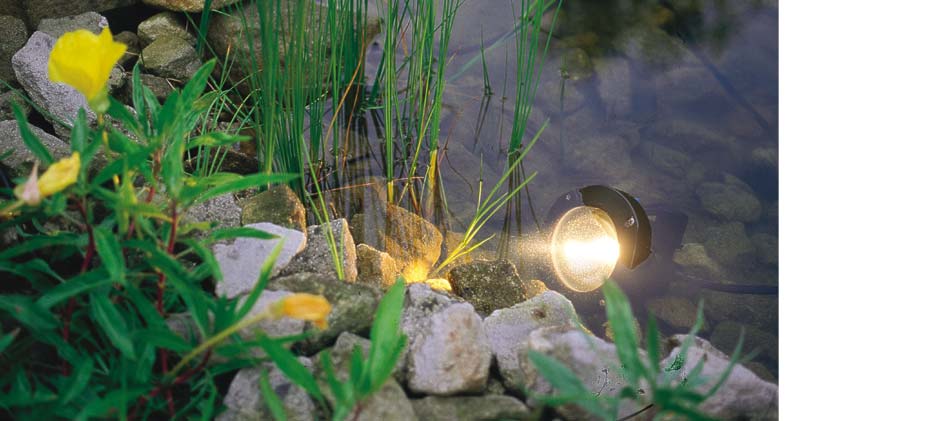

- LunAqua 10 is a light manufactured of impact-resistant plastic. The special structured glass cover, in conjunction with the aluminum reflector, creates optimal light exploitation.
- An integrated mounting bracket permits a swivel range of approx. 180°, when it is mounted on stone slabs, or on walls, for instance.

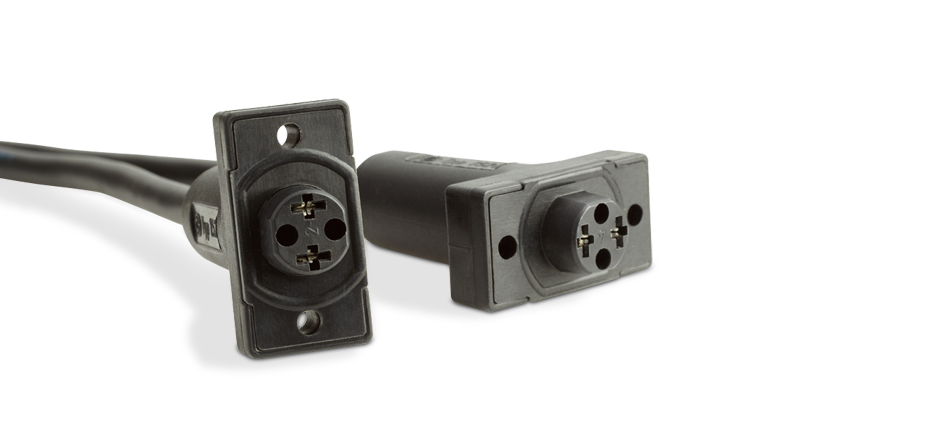

- This system’s special feature is the robust connector technology. The power cables of various lengths are equipped with special connectors that connect easily to the light housing or to the transformer housing.
The successful LunAqua 10 series sets new standards in LED technology; now it is also available in a warm-white LED version. As before, the proven system concept is in the foreground: Optimally matched cables and transformer ensure convenient installation. Naturally the LED and halogen version of the LunAqua 10-series are compatible. Thus a LunAqua LED light can easily be connected to an existing system with transformer and cable.
Product characteristics at a glance:

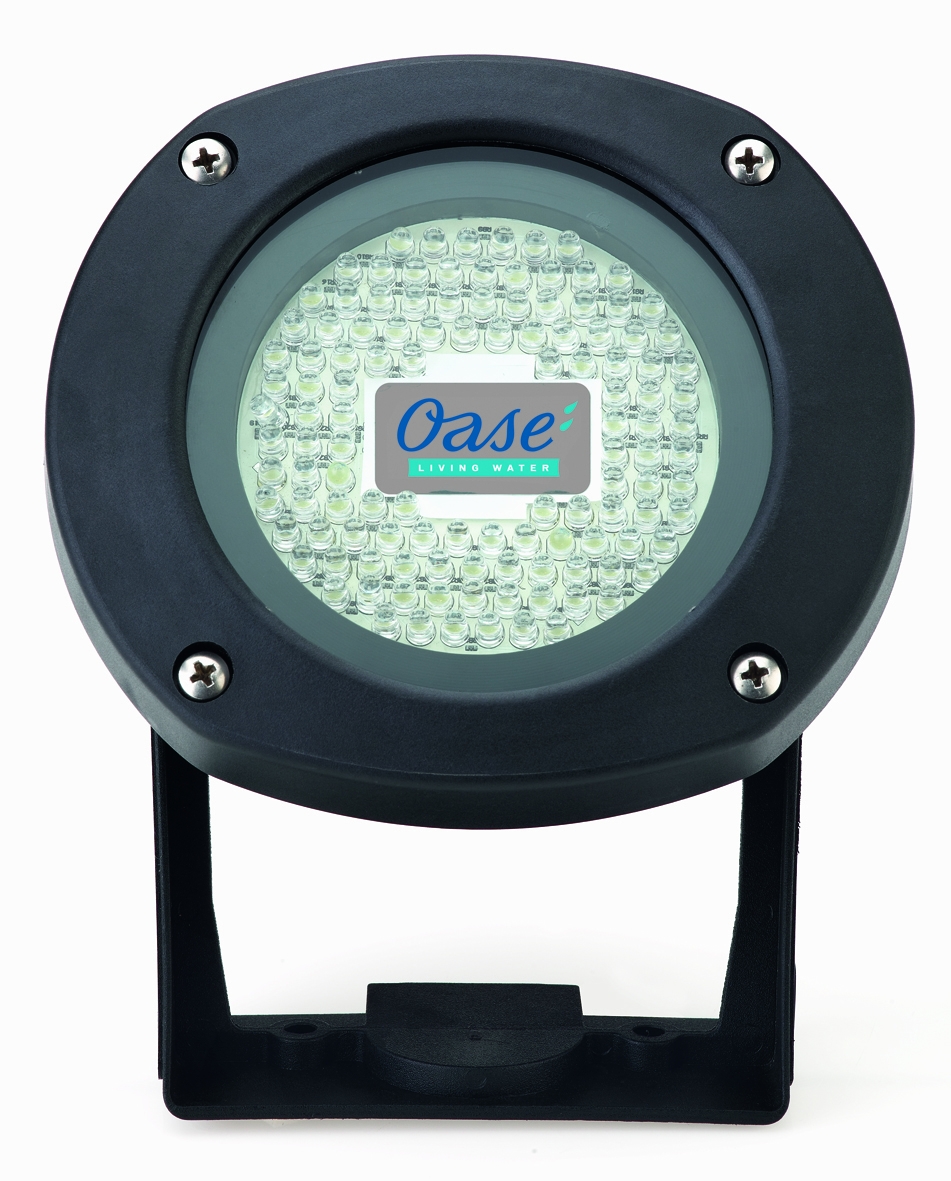

- LED spotlight in warm-white.
- Excess temperature protection reduces luminous intensity if the ambient temperature is too high.
- Incl. bulb (not dimmable).
- Compatible with LunAqua 10 Halogen series
cables and transformers.
- 12V (under water)/24V (above water) possible.
- Additional bulb available as a spare part, easy replacement.
- Housing made of impact-resistant plastic
- Pivot range approximately 180° thanks to the integrated mounting bracket
- Supplied without connecting cable and transformer
|
|
LunAqua 10
Halogen
|
LunAqua 10
Led/01
|
Underwater transformer
UST 150/01
|
Connecting cable
2.5m/01
|
Connecting cable
2.5m/01
|
Connecting cable
2.5m/01
|

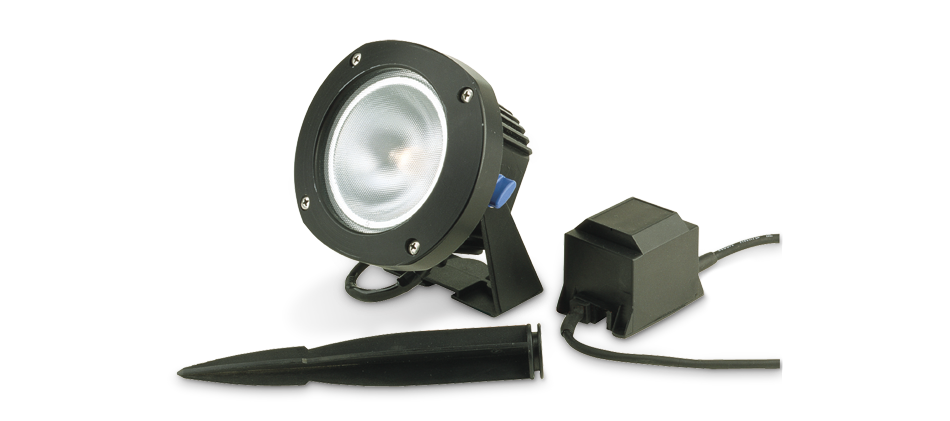

LunAqua 35
Set
|
|
Dimensions(LxWxH)
|
mm
|
145x160x182
|
140x140x89
|
-
|
145x160x182
|
|
Rated voltage
|
V
|
12
|
-
|
-
|
|
Rated voltage(primarysecondary)
|
V
|
-
|
230V/50Hz,12V
|
-
|
230V/50Hz,12V
|
|
Power consumption
|
W
|
35-75
|
10
|
150
|
-
|
35
|
|
Power consumption,set
|
W
|
-
|
-
|
40
|
|
Light flux
|
Im
|
1250*
|
365
|
-
|
-
|
|
Protection class
|
IP 68
|
|
Power cable length
|
-
|
10.00
|
2.50
|
5.00
|
7.50
|
9.50
|
|
Net weight
|
kg
|
0.82
|
1.12
|
4.46
|
0.32
|
0.56
|
1.16
|
2.52
|
|
Iluminant type
|
Halogen
|
LED
|
-
|
-
|
Halogen
|
|
Half peak angle Degrees
|
24
|
18
|
-
|
-
|
24
|
|
Cable cross section
|
-
|
1.50
|
2.50
|
1.50
|
ATTENTION! This product is not subject to promotion "free shipping ".
* This product is only available on demand! The ordering is required to pay an advance of 50%!
The time of delivery of the product will be 5-7 days!
