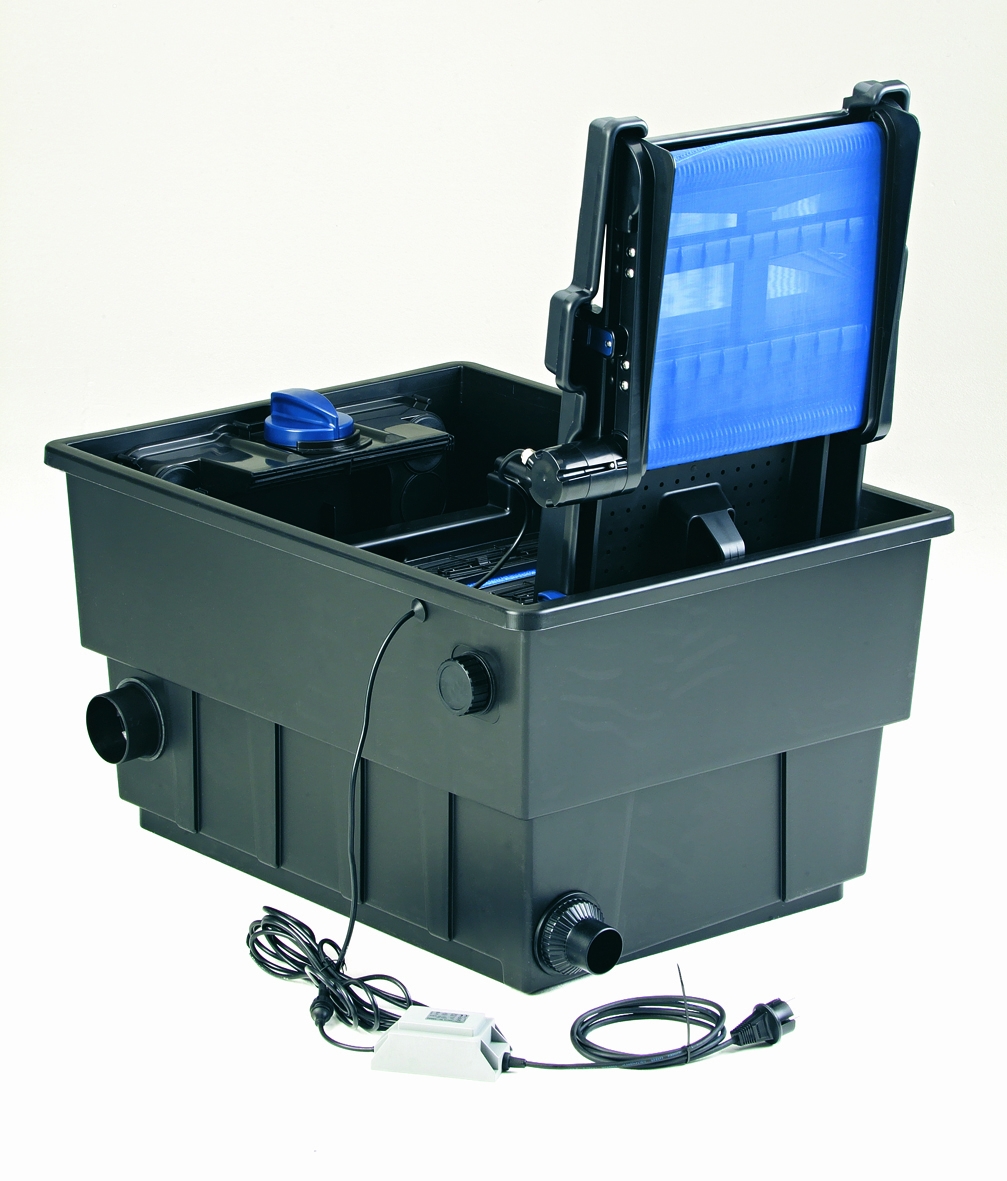

BioTec ScreenMatic

biotec screenmatic

Code: BioTec ScreenMatic

Name Diameter Price (ron) Availability Quantity
BioTec ScreenMatic 12 57127 4419 Lei Pre order - +
BioTec ScreenMatic 18 57128 5084 Lei Pre order - +
BioTec ScreenMatic 36 57129 7745 Lei Unavailable - +

Description

  • Suitable forponds up to 140m3
  • Highly effective flow through filter also for medium size koi ponds
  • Incl.OASE Clear Water Guarantee
  • Significantly less maintenanceis required,thanks to coarse debris extraction,upstream from the filter inlet

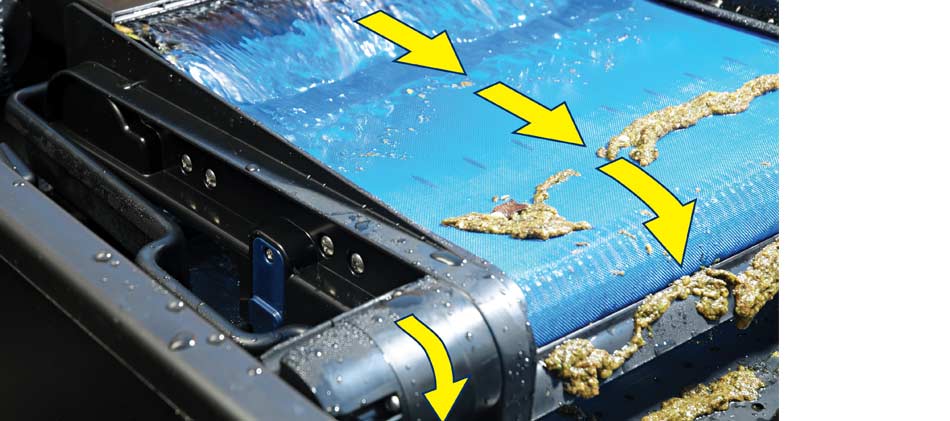

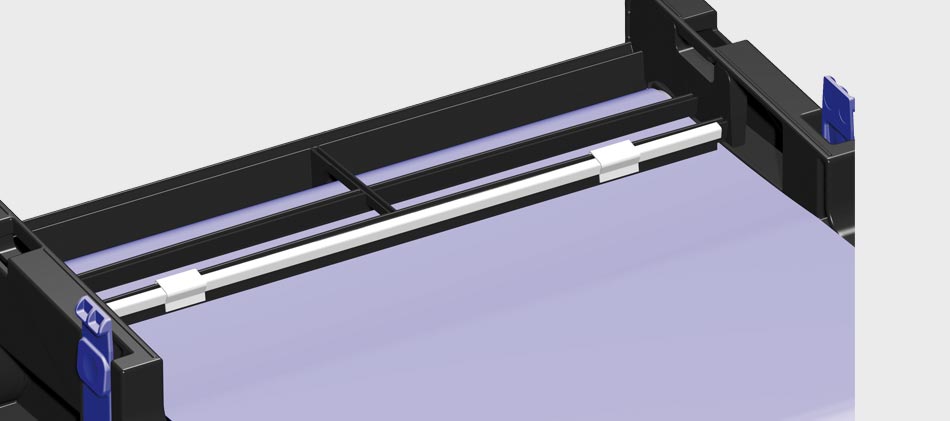

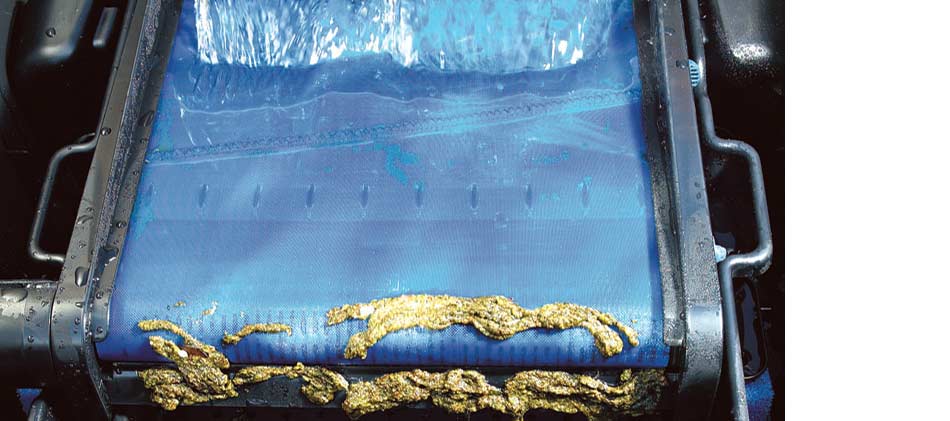

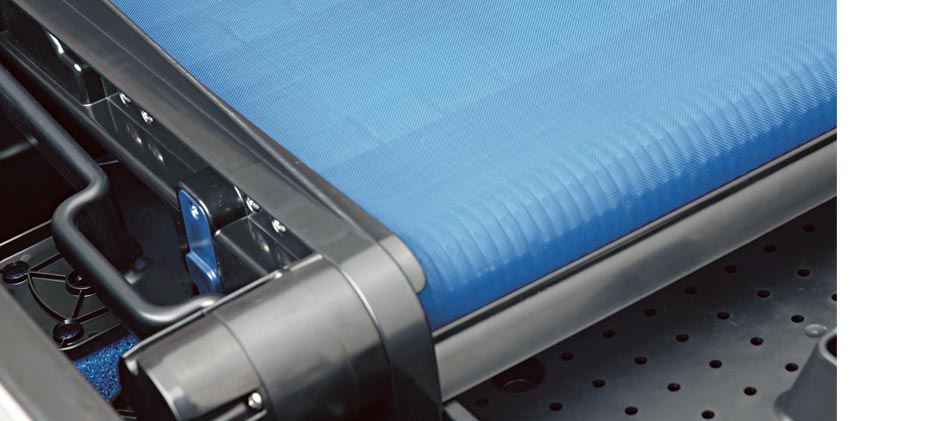

  • Automatically driven self cleaning of the Screenatic sieve

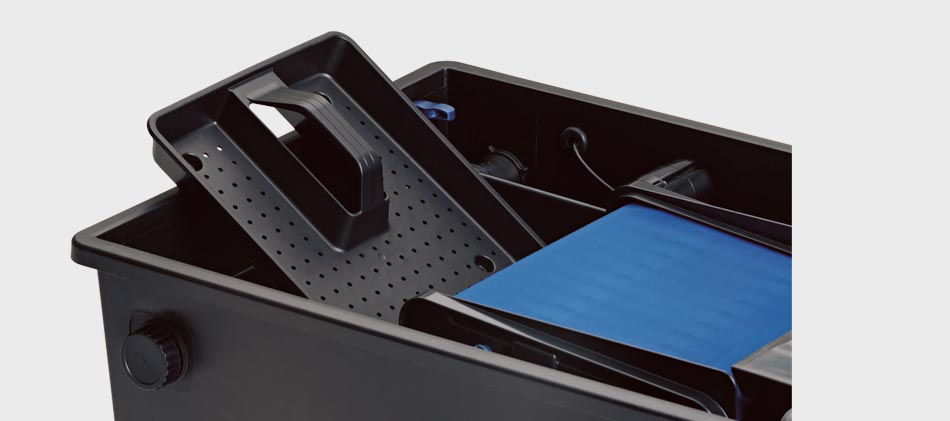

  • Collection tank for removal of extracted coarse pollutants

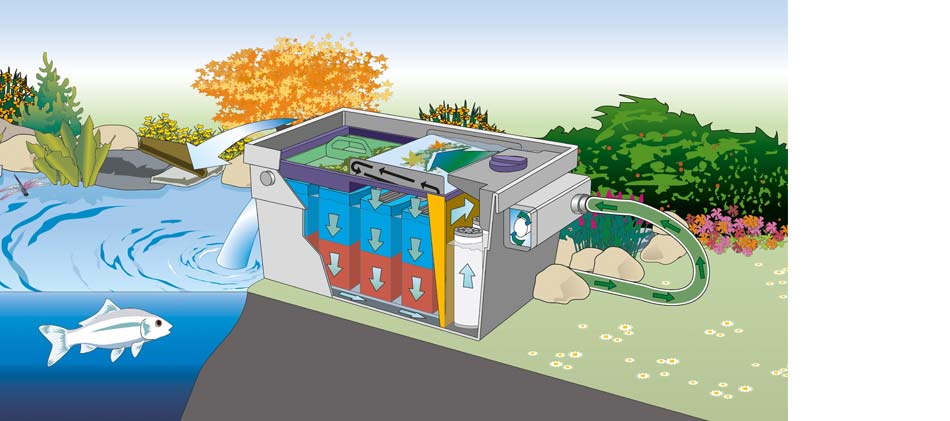

  • Different filter media and large settlement surface for optimal development of filter bacteria

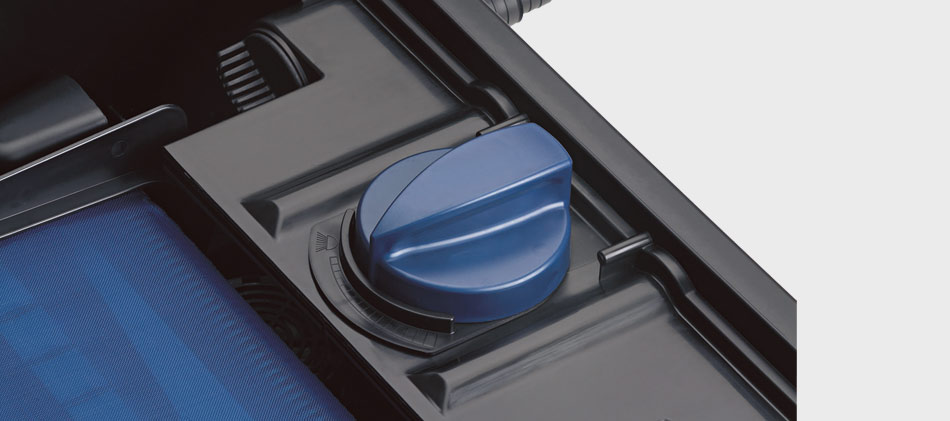

  • Flow speed of the incoming water can be badjusted individually depending on the amount of coarse debris
  • Sludge drain with slide valve for removing debris from the filter system
  • Cleaning of filter sponges directly in the filter,without removal
  • Use of the PhosLess filter media tubes as needed for string algae reduction(optional accessory)
  • Optimally matched to OASE AquaMax Eco filter pumps
  • Direct connection possibility for Bitron C and Eco UVC clarifiers
 TEHNICAL DATA:   BioTec ScreenMatic BioTec ScreenMatic BioTec ScreenMatic
    12 18 36
Dimensions (LxWxh) mm 788x590x445 788x590x545 380x560x410
Rated voltage(primary,secondary)   230V/50Hz,12V 230V/50Hz,12V 230V/50Hz,12V
Power consumption  W 5 5 5
Cable length 12V device m 2.10(power unit)+5 2.10(power unit)+5 2.10(power unit)+5
Net weight kg 19.88 23.24 93.5
Number of filter foams,total ea 16 16 36
Number of blue filter foams ea 8 8 18
Number of red filter foams ea 8 8 18
Special filter granulate kg 3 6 18
Temperature display   No No No
Coarse debris extraction μm 300 300 300
Connections  inlet   1",1¼",1½" 1",1¼",1½" 1",1¼",1½"2"
Connections  outlet   DN75 DN75 DN110
Connections sludge discharge   DN50 DN50 DN75
Max. flow rate l/h 10000 12000 23000
Suitable for ponds up to max. m³ 40 54 140
Suitable for ponds with fish stock m³ 20 27 70
Suitable for ponds with koi m³ 10 13.5 35
Connection to   Bitron C 36-110W+Eco 120-240W Bitron C 36-110W+Eco 120-240W Bitron C 36-110W+Eco 120-240W






This product is not subject to promotion "free shipping ". This product is only available on demand. The ordering is required to pay an advance of 50%.
